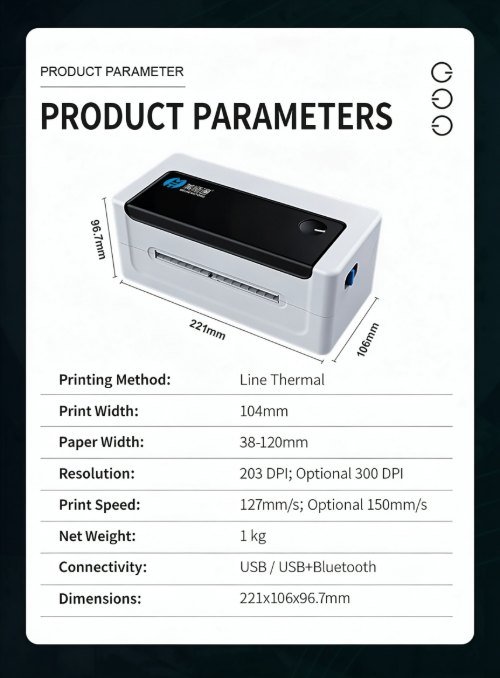

Printing Parameters

Printing Method

Line Thermal

Resolution

203dpi; Optional 300dpi

Print Instruction

Tspl (Customizable Cpcl/Zpl/Ep)

Print Width

104mm

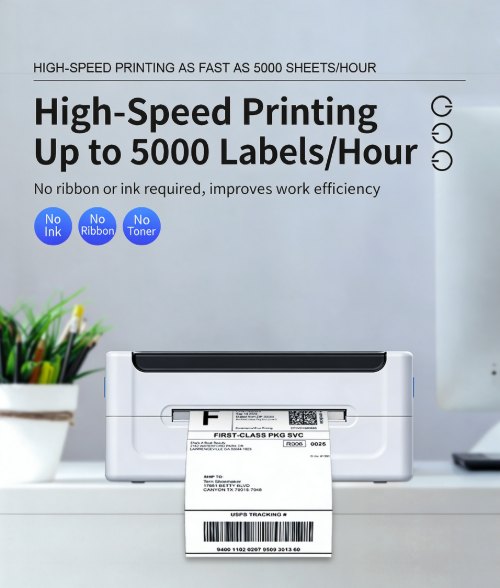

Printing Speed

127mm/s; Optional 150mm/s

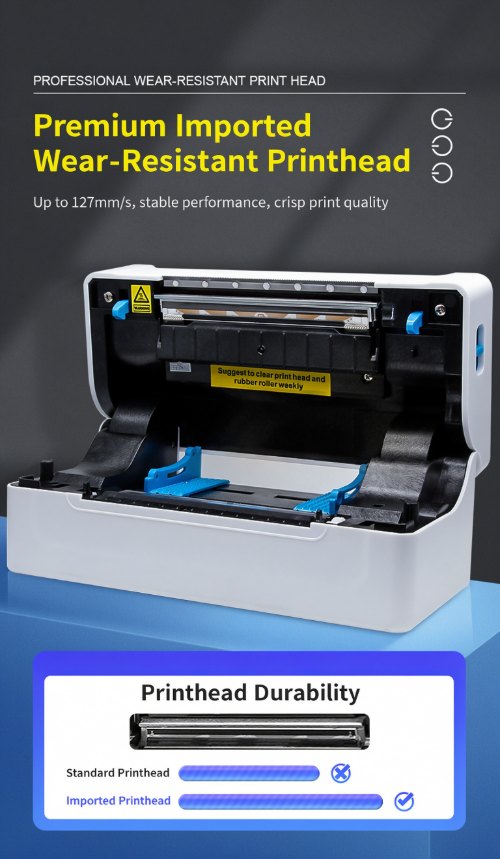

Print Head Life

50 Km (Label Paper); 150km (Continuous Paper)

Operating Platform

Usb Version: Windows/Linux/Mac Os

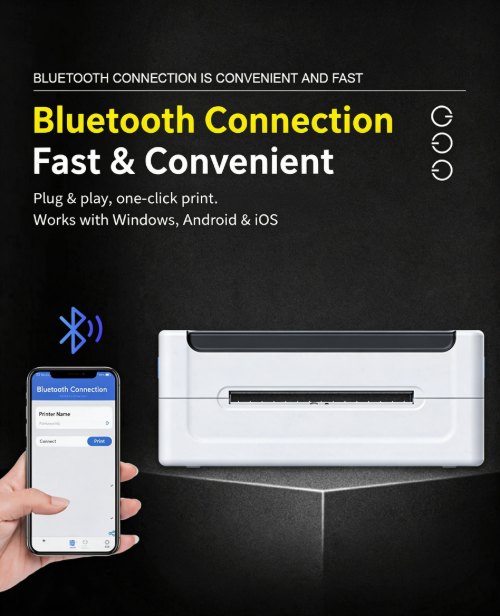

Bluetooth Version: Windows/Android/Ios

Run Memory Ram

2Mb

Flash

2Mb (Usb Version); 4mb (Bluetooth Version)

Connection Method

Usb/Usb+Bluetooth (Wifi Can Be Customized)

Opening Method

Side Button Toggle

Heating Head Temperature Detection

Thermistor

Paper Parameters

Paper Type

Label Paper, Continuous Paper, Black Label Paper, Stacked Paper

Paper Loading Method

Easy Paper Loading/Automatic Feeding

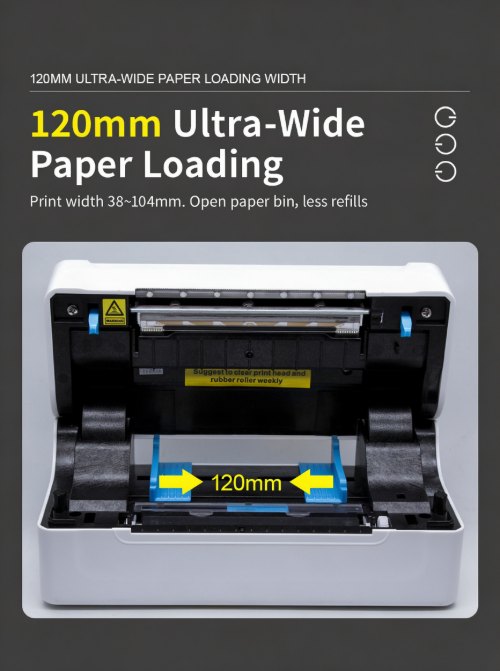

Paper Width

38-120mm

Label Height

Minimum 30mm; Maximum 250mm

Label Width

Minimum 38mm; Maximum 112mm

Media Thickness

0.06-0.18mm

Paper Cutting Method

Manual Tearing

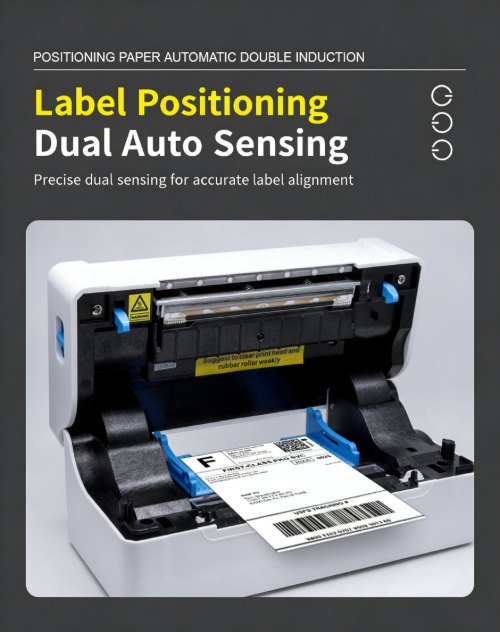

Axis Detection Method

Mechanical Detection Switch

Out Of Paper Detection

Optocoupler

Print Function

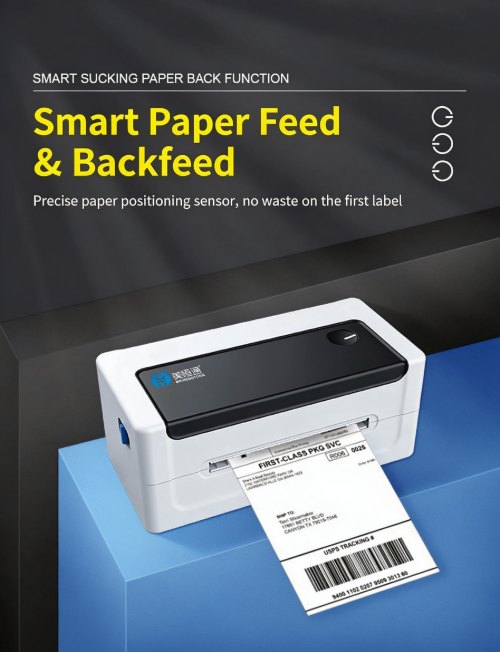

Automatic Paper Recognition, Intelligent Paper Return And Suction, Reprint For Lacking Paper, Defective Pixel Detection And Other Functions

Paper Bin Type

No Built-In Paper Bin (Paper Stand Optional)

Key Parameters

Key Operation

Power Button (Black Power Button On The Rear Side)

Lid Opening Button (Opening Button On Both Sides)

Feed Key (Black Feed Key Above)

Key Operation Function In This Scenario

1. Turn Off, Long Press Feed Key And Power Key : Self-Check Page Printing

2. Standby, Long Press Feed Key For 3 Seconds: Enter The Face-Sheet Learning Mode

3. Open Lid And Press Feed Key For 10 Seconds: Restore Factory Settings

4. Standby, Short Press Feed Key: Automatically Enter a Blank Sheet

5. During Continuous Printing, Short Press Feed Key: Printing Pauses

6. Pause Printing, Short Press Feed Key: Continue Printing

Indicator Status Description

The Indicator Light Keeps On: Normal Standby

Indicator Light Flashes: Buzzer Alarm

Buzzer Alarm Prompt

2 Beeps: Printer Head Error

3 Beeps: Lacking Paper

5 Sounds: Overheating Error

6 Sounds: Wrong Opening

7 Sounds: Wrong Stitch Mark

Barcode Parameters

Support Language

Support Most Languages, Individual Languages Need To Be Customized

Character

Standard Gb18030 Simplified Chinese

Character Size

Ascii Font a: 12×24
Ascii Font b: 9×17

Chinese Characters: 24×24

Extended Character Table

Cp437，Cp850，Cp852，Cp860，Cp863，Cp865，Cp866，Wpc1250，Wpc1251，Wpc1252，Wpc1253，Wpc1254

Barcode Type

One-Dimensional Code: Code 39，39c，i25，Code 93，Itf25，Ean128，Code 128，Codabar，Ean-8，Ean8+2，Ean8+5，Ean-13，Ean13+2，Ean13+5，Upc-a，Upca+2，Upca+5，Upc-e，Upce+2，Upce+5 Msic，Itf14，Ean14，Code11，Post

QR Code: Qrcode, Pdf417 (Optional)

Font And Barcode Rotation

Supports

Packing Specification

Usb Interface

1*Standard Usb

Charging Port

DC

Adapter

24v/2.5a

Accessories

■Power Adapter ■Power Cord ■Usb Data Cable ■Quick Safety Guide

Package

■Kraft Paper ■Pearl Cotton Partition ■Pearl Cotton Lining

Product Weight

1kg

Product Size

222x102x96mm

Outer Box Size (Single Unit)

26x13.6x19.1cm, 1.71kg

Outer Box Size (8 Units)

53x39.6x29cm, 16kg

Temperature

Working Temperature: 0-45℃; Storage Temperature: -10-60℃

Humidity

Working Humidity: 20-90%; Storage Humidity: 10-90%

Certification Specifications

Certification Requirements

CCC, CE, FCC
